| Model | Net Capacity (L) | Weight (Empty/Full) | Length (mm) | Max Pressure | Hold Time |
|---|---|---|---|---|---|
| 220L | 198L | 225 / 299 kg | 1135 mm | 16 bar | ≥5 days |
| 300L | 270L | 240 / 350 kg | 1385 mm | 16 bar | ≥5 days |
| 350L | 315L | 255 / 385 kg | 1560 mm | 16 bar | ≥5 days |
| 450L | 405L | 280 / 455 kg | 1890 mm | 16 bar | ≥5 days |
| 570L | 513L | 324 / 552 kg | 2280 mm | 16 bar | ≥5 days |
| 600L | 540L | 334 / 562 kg | 2380 mm | 16 bar | ≥5 days |
* Hold Time according to R110
Versatile range
Configuration Options
- Single Tank System – Left or right mounted
- Double Tank System – Extended range of 1500+ km
- Ideal for various commercial fleet sizes and vehicle types
quick and safe installation
Mounting & Integration
- Rear-Facing Shroud – Ensures optimal performance even on slopes
- Horizontal Installation – Maximizes space efficiency and liquid draw
- Vehicle Compatibility – Designed for standard commercial chassis
- Customized bracket for mounting on various chasis.
Why 16 Bar?
Optimized Pressure for Safety & Efficiency
- Balanced Performance: 16 bar offers an ideal trade-off between pressure and fuel content, reducing weight and enhancing payload.
- Operational Ease: Lower pressure simplifies refueling and avoids the need for high-pressure venting systems.
- Safety Advantage: Reduced pressure means quieter relief valves and lower risk of leaks, making it safer for operators and stations.
Maintenance & Support
Comprehensive Service, Anytime You Need It
- Service for ACS and third-party tanks.
- Leak detection, vacuum restoration, welding repairs
- Support centers in India & Europe
Key Features
Built for Performance, Safety, and Efficiency
PESO Homologated & R110 Compliant
PESO Homologated & R110 Compliant
Triple Pressure Relief Valves
Triple Pressure Relief Valves
Super Insulation with High Vacuum
Super Insulation with High Vacuum

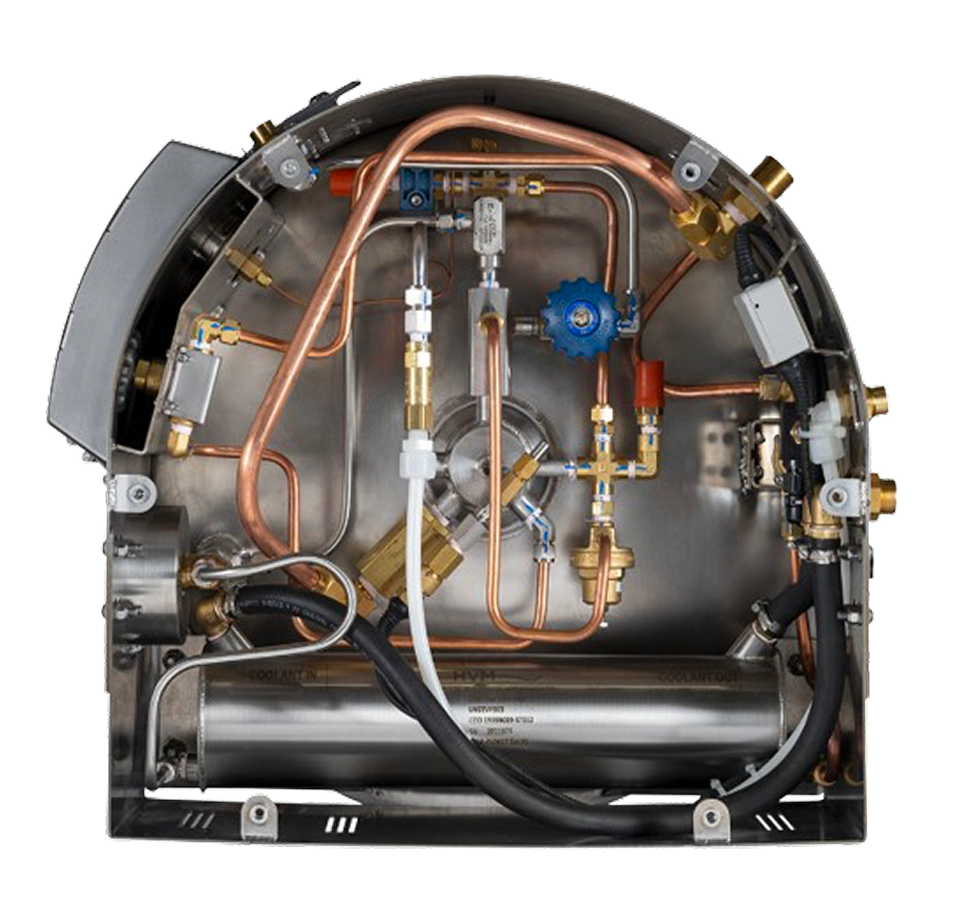

Integrated Heat Exchanger
Integrated Heat Exchanger
Proximity Sensor for Safe Refueling
Proximity Sensor for Safe Refueling
Robust Design & Superior Manufacturing
Robust Design & Superior Manufacturing
Universal Filling Connections
Universal Filling Connections
Automatic Excess Flow Valve
